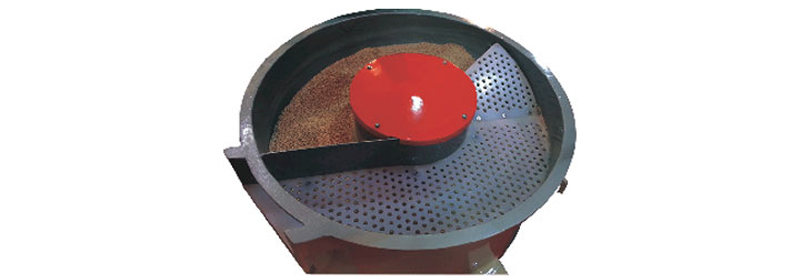

Vibratory Dryer

Vibratory Dryers are designed for stainfree, dent free drying and polishing of components, immediately after vibratory/centrifugal finishing.

Maizorb/Corncob is used as the drying media. This media is heated with the help of heaters inside the machine. The rubbing action of the mass eliminates the evaporated water deposited on the surface of the parts. The equipment is offered in, both, batch and continuous operations.

MODEL	OUTSIDE DIAMETERS (mm)	BOWL ‘U’ WIDTH	MOTOR (HP)	No. of Heater
TVD-40	672	160	0.25	2.00
TVD-80	902	230	0.5	3.00
TVD-180	1150	256	1.5	2.00
TVD-350	1350	340	2	4.00
TVD-600	1570	380	3	4.00
TVD-1200	2000	600	7.5	8.00

Features

 Continuous operation
 Can be automated and integrated with the total system
 Mobile, fast and easy to install
 Space saving than any other drying unit of similar capacity and output
 Adjustable
 Can handle small to medium size parts.
 In-Process Inspection can be done.
 Energy Efficient.
 Stain free and dent free drying
